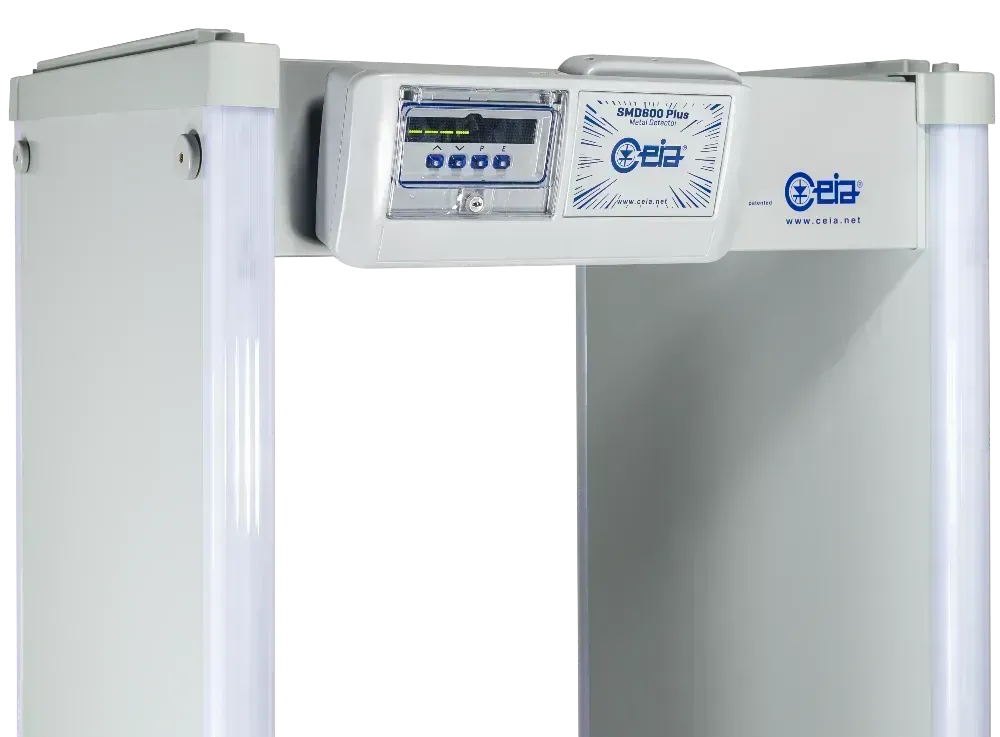

SMD600^® Plus Walk-Through Metal Detector

The CEIA USA SMD600 Plus is an advanced walk-through metal detector designed for high-security screening environments that require precise detection and efficient performance.The SMD600 Plus is the first metal detector fully compliant with the ASTM standard for all security levels It provides reliable detection of threat objects made from magnetic, non-magnetic, and mixed alloy materials, while offering refined discrimination of non-threat items to help reduce false alarms and improve screening accuracy. Built for high-volume and high-risk checkpoints, the system features 60 pinpoint detection zones for fast and accurate analysis from shoe level to the crossbar. The SMD600 Plus also supports optional security upgrades and add-on technologies to meet specific operational requirements.

Request a Demo

View Brochures

NIJ-Certified High-Sensitivity Metal Detection

The CEIA USA SMD600 Plus walk-through metal detector is designed for high-security environments that require both strict threat detection and fast screening throughput. Fully compliant with the NIJ-0601.02 Standard, it delivers reliable detection performance for correctional facilities, airports, government buildings, and other critical infrastructure. The system analyzes the entire body from the shoe level to the crossbar and detects metallic threats and contraband while accurately identifying the location of detected metal objects. Dual-side 20×2 localization zones pinpoint the vertical position of metal on the body, allowing security personnel to quickly identify threat locations.

Met-Identity technology distinguishes between ferrous and non-ferrous metals using separate alarm signals to assist secondary inspection decisions. Advanced discrimination technology allows common personal items such as belts, coins, keys, jewelry, watches, and wallets to pass without triggering alarms, reducing nuisance alerts and improving screening flow. With a reset time as short as 0.2 seconds, detection speeds up to 50 ft/sec, and transit flow rates five or more times greater than other metal detection systems, the SMD600 Plus supports efficient screening in high-traffic security checkpoints. The waterproof control unit ensures reliable indoor and outdoor operation, while optional upgrades such as the MI2 sensor enable detection of concealed smartphones and cellphones.

Fast-Track Security: High-Throughput Detection with MI2 Technology

The MI2 sensor is a multi-sensor technology, specifically an 18-axis passive magnetometer, integrated into Walk-Through Metal Detectors (WTMD). This technology combines the ability to detect metallic weapons (including magnetic and non-magnetic weapons and items made of light alloys) with the specific capability to identify mobile devices, including standard and miniaturized cellphones or smartphones with low metal content

The purpose of the MI2 sensor is to optimize security in high-traffic environments, such as correctional facilities, data centers, and corporate meeting rooms. By distinguishing between different types of threats, the system provides specific optical and acoustic signaling (red for weapons and yellow for cell phones). This allows security personnel to immediately identify the type of object detected, facilitating more efficient screenings, better management of access restrictions, and improved prevention of electronic device theft.

Where SMD600 Plus Excels

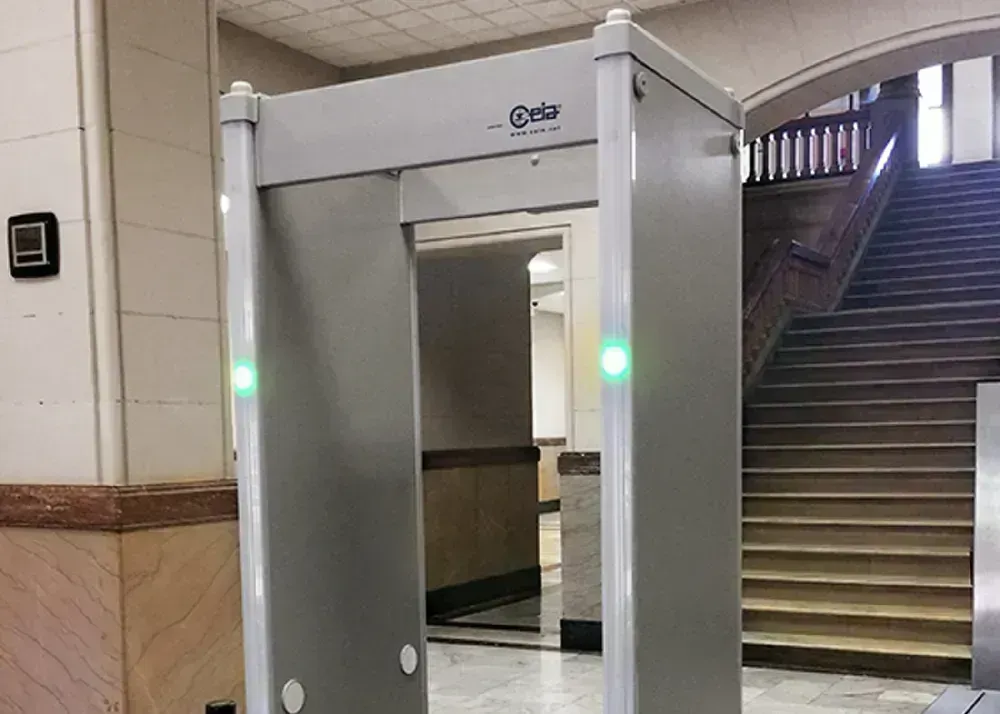

Correctional Facilities and Prisons

The CEIA USA SMD600 Plus metal detector is fully compliant with the NIJ-0601.02 Standard, making it ideal for correctional facility screening. The detector supports visitor, staff, and inmate inspection at high-security checkpoints where very high detection sensitivity is required. Dual 20×2 localization zones help security personnel quickly identify the position of detected metal objects, while optional MI2 technology enables the detection of concealed cellphones and smartphones.

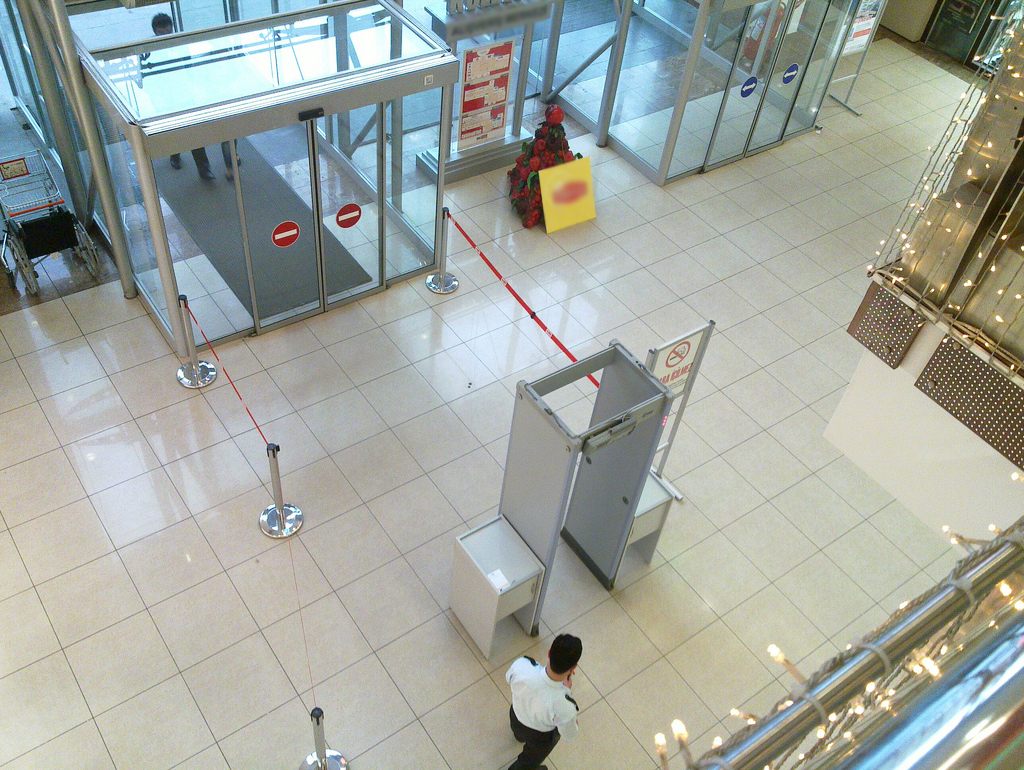

Airports and Transportation Security

The SMD600 Plus walk-through metal detector is designed for high-throughput passenger screening environments. Advanced discrimination technology allows common personal items, such as belts, coins, keys, and jewelry, to pass through without removal, reducing nuisance alarms and improving screening flow. The detector maintains strong threat-detection performance while enabling efficient passenger movement through security checkpoints.

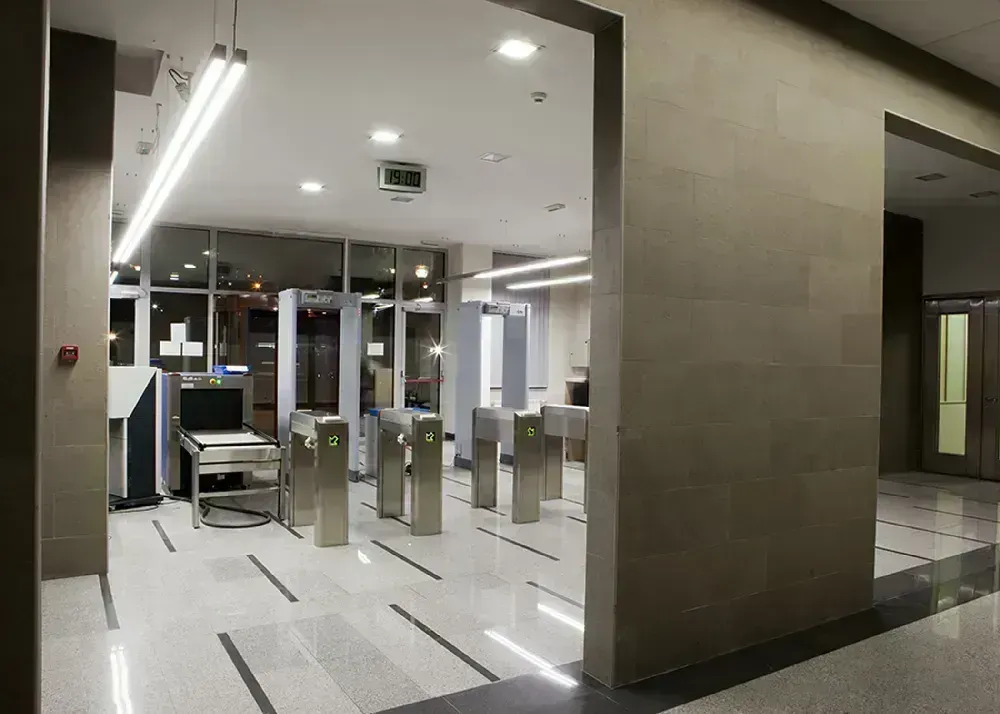

Industrial and Data Processing Facilities

The SMD600 Plus metal detector can also be deployed in industrial environments and data processing centers where security screening is required. High discrimination performance allows personnel to pass through screening with common personal items while maintaining reliable detection of metallic threats.

Key Features & Benefits

NIJ-0601.02 Certified

First metal detector fully compliant with the NIJ-0601.02 Standard for all security levels

Dual 20×2 Localization Zones

Pinpoints the vertical position of detected metal targets

MI2 Cellphone Detection

Optional detection of concealed cellphones and smartphones

No Divesting Required

Belts, coins, keys, jewelry, watches, and wallets can remain on the person

Up to 50 Security Programs

Includes 30 international standards and 20 customizable security levels

Specifications

NIJ-0601.02 Certified Security Screening

The SMD600 Plus is fully compliant with the NIJ-0601.02 Standard for metal detectors used in law enforcement and correctional facilities. This certification ensures reliable detection performance and supports three adjustable security levels for detecting threats ranging from firearms to small metallic contraband, making it well-suited for prisons, government buildings, and high-security checkpoints.

Dual 20×2 Localization Zones

The SMD600 Plus uses dual-side 20×2 localization zones to identify the vertical position of detected metal objects. Visual light bars indicate the height of the detected item on the body, helping security personnel quickly locate the source of an alarm and perform faster secondary screening in high-throughput checkpoints.

High Throughput Detection Performance

The SMD600 Plus is designed for high-throughput security environments where both detection accuracy and speed are critical. With a reset time as short as 0.2 seconds and detection speed up to 50 ft per second, it supports rapid screening while maintaining strong threat detection and reducing nuisance alarms.

Advanced Discrimination Technology

The detector includes advanced discrimination technology that allows common personal items such as belts, coins, keys, jewelry, watches, and wallets to pass without triggering alarms. This reduces unnecessary divesting, allowing security staff to focus on real threats and maintain faster screening.

IP66 Weatherproof Control Unit

The SMD600 Plus features a rugged IP66-rated control unit that is waterproof and dustproof for reliable operation in indoor or outdoor installations. Its durable construction resists environmental wear and vandalism, supporting long-term use in correctional facilities, government entrances, and industrial screening environments.

Accessories

Enhanced environmental protection for outdoor deployment in sheltered permanent installations or non-sheltered short-term applications. Protects system components from weather exposure while maintaining IP66 waterproof performance. Available for both standard 720mm and wide 820mm passage configurations.

NIJ-certified reference samples for security level verification and compliance testing. Includes guided procedures and a certificate of calibration. Ensures consistent performance verification according to NIJ-0601.02 Standard. Essential for maintaining NIJ certification and operational readiness in correctional facilities.

Pre-programmed chip cards with NIJ security levels enable fast, simple, and secure level selection. Password-protected access for authorized personnel only. Quick security level changes between visitor screening and inmate screening without complex programming.

Full remote access control unit for alarm signaling and programming. Connection via serial cable or Bluetooth option enables flexible deployment. Centralized management of multiple metal detectors from a single control station. Essential for distributed correctional facility installations.

Weather-resistant power adapter for permanent outdoor installations. Complements the battery backup system for continuous operation during multi-shift screening. Eliminates battery recharging requirements in facilities with reliable electrical infrastructure.

Heavy-duty wheel kit enables transport between screening locations or facility repositioning. Essential for facilities requiring flexible checkpoint placement or temporary screening station deployment.

The MI2 accessory is optimized for the enhanced screening of people in applications where the simultaneous detection of magnetic and non-magnetic weapons (including light alloys) and all cellphones/smartphones are required. This dual-sensor system combines the renowned weapons detection and personal metallic objects discrimination capability of the SMD600 Plus and SMD601 Plus Metal Detectors with the MI2 sensor which provides unparalleled detection uniformity and immunity to interference, detecting standard and miniaturized cellphones and smartphones concealed on the person or/on the body. In addition, the complete systems detect more common magnetic items, such as smartwatches and select headphones/earbuds, and provide signaling to differentiate cellphone versus weapon detection alerts.

MBSU2 Portable Power Supply Unit providing reliable 24V DC power and integrated UPS for CEIA USA metal detection systems. Designed for environments where mains power is unstable or unavailable, it features IP65 protection for outdoor durability and a compact footprint for space-limited checkpoints. A standard 4-pin connector and LED indicators ensure seamless, uninterrupted performance in mobile or temporary screening operations.

Heavy-duty 24V DC portable power supply and UPS unit for CEIA USA detection systems. Designed for rugged, outdoor environments requiring reliable power. Features IP65 weather resistance, reinforced housing, and a heavy-duty connector for frequent deployment. Integrated LED indicators and high-capacity battery technology ensure uninterrupted operation in remote or mobile security scenarios.

Manufacturer-certified test samples for metal detector performance verification. Designed to replicate real threat signal characteristics for accurate assessment. Ensures compliance with NILECJ, ASTM, and NIJ standards. Provides a standardized, reliable solution for quality assurance and compliance testing in walk-through metal detection systems.

Specialized divesting table for CEIA walk-through metal detectors, offering temporary storage for metal effects to reduce false alarms. Features zero-influence technology eliminating electromagnetic interference. Available in three sizes, including an outdoor version with adjustable height. Durable, ergonomic design supports efficient checkpoint integration and reliable operation in outdoor and high-traffic environments.

Met-Identity Technology

Met-Identity technology provides separate ferrous and non-ferrous alarm signaling, allowing operators to understand the type of metal that triggered the alarm rather than just detecting metal in general. This additional information helps security personnel interpret alarms more quickly, distinguish between different types of objects, and perform more efficient secondary screening.
